SB

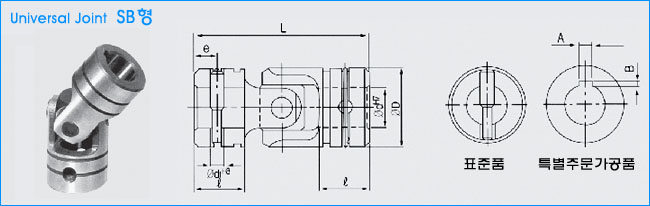

series Dimensions
|
|
| ±âÈ£ |
ØdH7 |
L |
D |
§¤ |
e |
d |
Å丣ũ |
ÀÎÀåÇÏÁß |
Áß·® |
| Çü½Ä |
H8 |
kg·m
|
kg |
kg |
| SB-
6 |
6 |
31 |
12 |
9 |
4.5 |
3 |
3.2 |
550 |
0.015 |
| SB-
8 |
8 |
36 |
15 |
10 |
5 |
3.5 |
6.3 |
800 |
0.030 |
| SB- 10 |
10 |
42 |
19 |
12 |
6 |
4.5 |
13 |
1,420 |
0.055 |
| SB- 12 |
12 |
52 |
23 |
15 |
7.5 |
5 |
21 |
2,440 |
0.110 |
| SB- 14 |
14 |
59 |
26 |
17 |
8.5 |
5.8 |
35 |
2,700 |
0.155 |
| SB- 16 |
16 |
74 |
30 |
22 |
11 |
6.5 |
45 |
3,980 |
0.260 |
| SB- 18 |
18 |
81 |
33 |
23.5 |
11.75 |
7 |
52 |
4,520 |
0.345 |
| SB- 20 |
20 |
87 |
36 |
25 |
12.5 |
8 |
63 |
5,330 |
0.465 |
| SB- 22 |
22 |
94 |
40 |
27 |
13.5 |
9 |
85 |
6,960 |
0.630 |
| SB- 25 |
25 |
105 |
44 |
30 |
15 |
10 |
140 |
8,310 |
0.790 |
| SB- 30 |
30 |
122 |
51 |
35 |
17.5 |
11.5 |
218 |
10,580 |
1.160 |
| SB- 35 |
35 |
140 |
59 |
40 |
20 |
13 |
380 |
14,670 |
2.255 |
| SB- 40 |
40 |
157 |
67 |
45 |
22.5 |
14.5 |
560 |
19,320 |
2.730 |
| SB- 45 |
45 |
176 |
75 |
50 |
25 |
16 |
630 |
23,210 |
4.350 |
| SB- 50 |
50 |
191 |
83 |
55 |
27.5 |
17.5 |
760 |
29,080 |
5.200 |
| SB- 60 |
60 |
236 |
98 |
70 |
35 |
22 |
1,510 |
43,490 |
6.538 |
|
|
|
