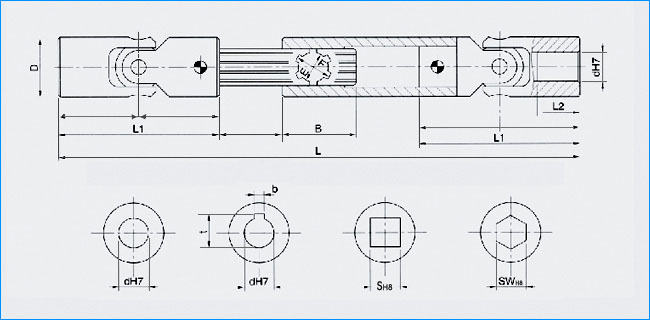

Line Shafts With "AL" Series Joints Dimensions


TYPE dH7 D L1 L2 B E/F S SW b x t
203ALS 10 22 45 10 40 11/14 10 10 3x11.4
204ALS 12 25 50 11 45 13/16 12 12 4x13.8
205ALS 14 29 56 13 48 13/16 14 14 5x16.3
206ALS 16 32 65 15 50 16/20 16 16 5x18.3
207ALS 18 37 72 17 51 16/20 18 18 6x20.8
208ALS 20 40 82 19 56 18/22 20 20 6x22.8
209ALS 22 47 95 22 60 21/25 22 22 6x24.8
210ALS 25 50 108 27 69 23/28 25 25 8x28.3
211ALS 30 58 122 30 70 26/32 30 30 8x33.8
212ALS 35 70 140 35 70 28/35 35 35 10x38.3
213ALS 40 80 160 42 75 33/40 40 40 12x43.3
214ALS 50 95 190 54 80 43/50 50 50 14x53.8
