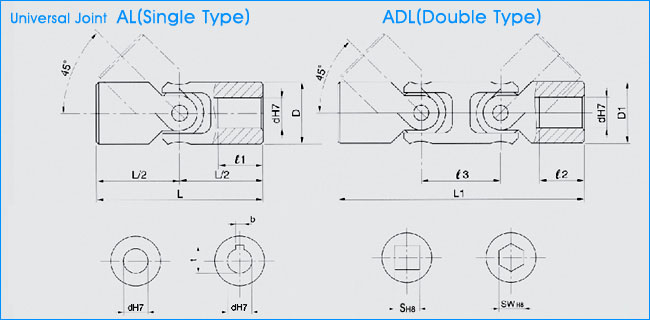

General Light Series Joints :  AL(Single Type),  ADL(Double Type) Dimensions


TYPE d D D L L §¤1 §¤2 §¤3 S SW bxt
Single Double
100AL - 5 10 - 40 - 13 - - - - -
101AL - 6 13 - 40 - 13 - - 6 - -
102AL - 8 16 - 40 - 10 - - 8 - 2X9
103AL - 10 20 - 62 - 19 - - 10 10 3X11.4
104AL 104ADL 12 25 25 74 86 23 19 33 12 12 4X13.8
105AL 105ADL 14 29 25 74 95 23 21 33 14 14 5X16.3
106AL 106ADL 16 32 32 86 104 26 21 35 16 16 5X18.3
107AL 107ADL 18 37 37 120 180 41 54 39 18 18 6X20.8
108AL 108ADL 20 40 40 108 128 32 21 46 20 20 6X22.8
109AL 109ADL 22 47 47 130 200 41 54 46 22 - 6X24.8
110AL 110ADL 25 50 50 132 163 41 25 59 25 25 8X28.3
111AL 111ADL 30 58 58 166 182 52 30 66 30 30 8X33.8
112AL 112ADL 35 70 70 140/200 212/310 35/65 30/79 78 AS ON REQUEST
113AL 113ADL 40 80 80 160/228 245/350 42/76 38/90 95
114AL 114ADL 50 95 95 190/270 290/426 54/94 50/118 120
