Universal Joint Size

20

30

45

70

90

160

250

350

500

허용토오크

Mb kgf·m

20

30

45

70

90

160

250

350

500

Mz kgf·m

28

41

63

100

125

220

320

470

670

허용작동각

β°

22°

18°

18°

18°

18°

20°

20°

20°

20°

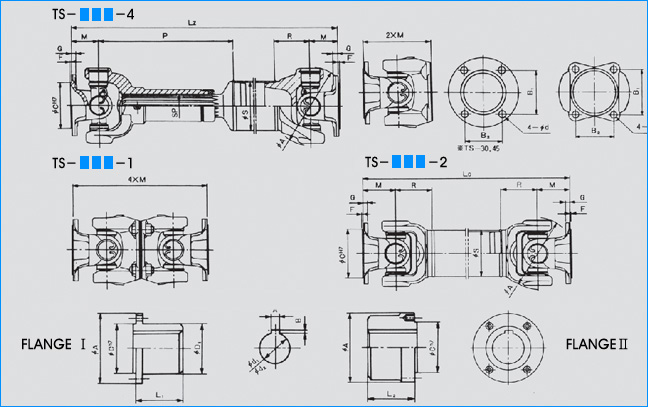

DIMENSIONS

ØA

73

87

98

120

137

142

168

198

210

B₁

50

53

61

72

86.5

85

116

131

133.5

B₂

25

45

51

62

72.6

80

80

92

104

ØC^H7

34

57

60

70

85

62

90

100

90

F

2.5

1.8

1.5

2.5

3.0

3.5

4.0

5.0

5.0

G

6.2

5.8

7.0

8.2

10.0

11.0

12.0

14.5

15.0

M

38

40

36.5

43

46

60

65

78

75

P

178

190

180

230

250

295

285

360

310

R

41

39

40

53

47

70

74

99

80

SP

25

25

35

35

40

45

48

60

60

ØS

30

48

50.8

70

76.3

90

90

115

101.6

Ød

8

8

10

10

12

12

14

16

16.5

Lz(MIN)

340

350

310

380

450

480

500

740

740

+

20

20

25

30

30

35

35

40

40

_

20

20

20

20

20

20

20

25

25

Flange

Ⅰ,Ⅱ

L₁

40

48

55

55

70

80

95

115

125

ØD₁

40

55

60

65

80

90

100

130

140

Ød₁

25

30

35

35

45

50

60

75

80

Ød₂

45

50

60

70

80

85

100

120

130

Bolt

SizeXℓ

SizeXℓ

M8X20ℓ

M8X21ℓ

M10X25ℓ

M10X25ℓ

M12X35ℓ

M14X45ℓ

M16X48ℓ

M16X48ℓ
